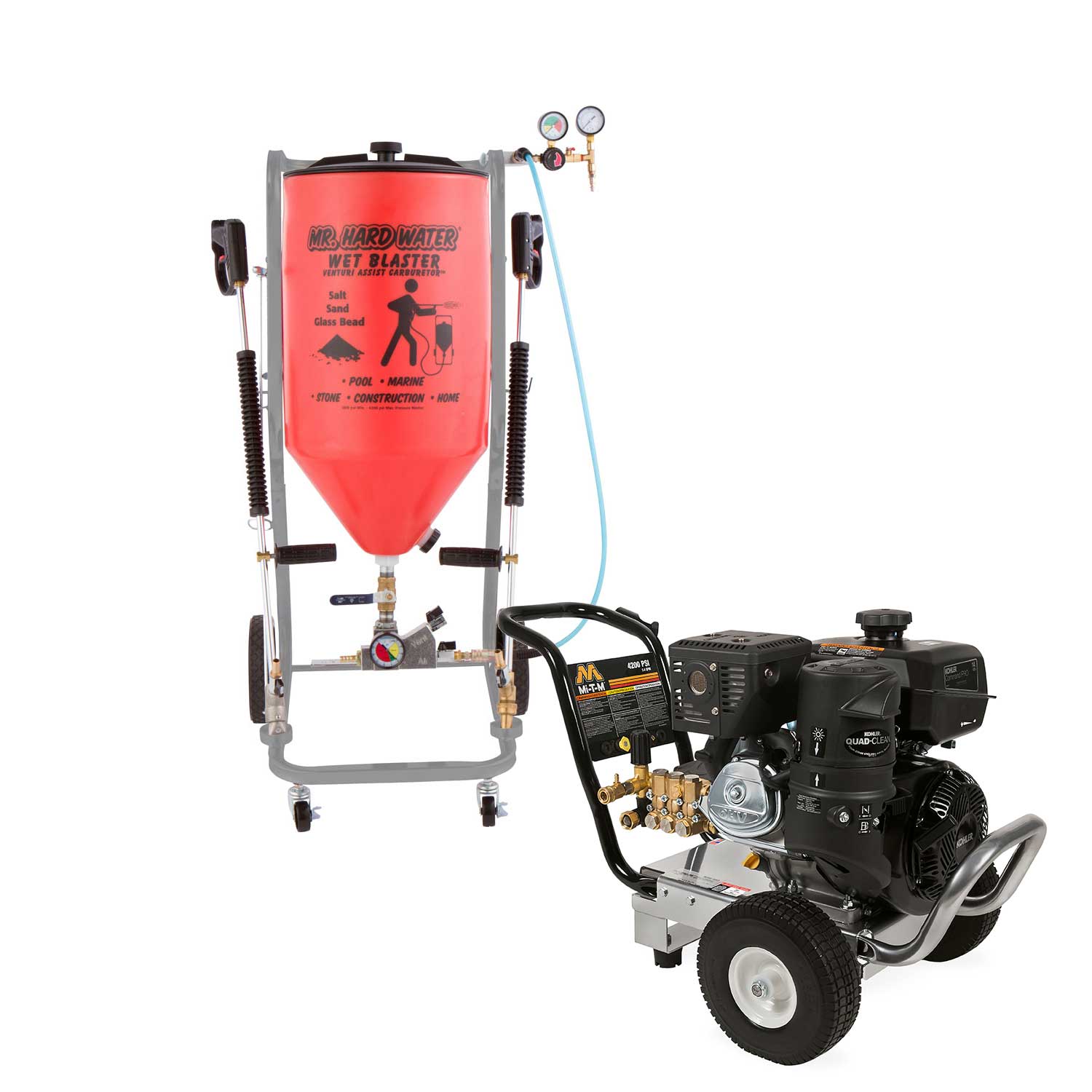

Mr. Hard Water® – Carburetor Hopper 2 Guns With Mi-T-M 4200 PSI Pressure Washer
Ideal for:
- Pool Cleaning Professionals
- Equipment Rentals
- Construction Supplies
- Farm and Equipment
- Government
- Marine Boatyards
- Pool Supplies
Note that the carts are now made of enamel painted metal and not chrome as shown in other pictures and videos.
| Qty | Item | Carburetor Hopper – 2 Guns |
| 1 | Orange Hopper – 150 lb | ● |
| 1 | Screw Lid – 12″ Vented Twist Lock | ● |
| 1 | VAC – Venturi Assist Carburetor w/ Vacuum Gauge | ● |
| 1 | VAC – Regulator Assembly w/ Cart Bracket | ● |
| 1 | VAC – Carrying Case | ● |
| 1 | Clear Vinyl Media Hose – 100 ft | ● |
| 2 | Locking Removable Castor Wheels | ● |
| 2 | Hopper Side Bolts – Thumb Screws for Tilt Up Maintenance | ● |
| 1 | Lance 2″ – Close Up Blasting | ● |
| 1 | Drain Snake Poker | ● |
| 2 | 3/4″ Grommeted Velcro Gun Straps – Bottom | ● |
| 1 | Media Stake – 20″ for 5 Gal Bucket Operation | ● |
| 1 | Instruction Manual | ● |
| 1 | Steel Cart | ● |
| 1 | 3/4″ Media Control Valve | ● |
| 1 | Gun Assembly w/ 15 ° Blast Head & Side Handle | ● |
| 1 | 15 ° Fan Tip – Accessory Pack | ● |
| 1 | – 15 ° Fan Tip | ● |
| 1 | – 15 ° Fan Tip Rubber O – Ring | ● |
| 2 | – Blast Head Body Set Screws | ● |
| 1 | – Nozzle Tip Wrench | ● |
| 1 | – Nozzle Tip Cleaning Tool | ● |
| 1 | – Media Clean Out Brush | ● |
| 1 | – Quick Connect Fitting – 1/4″ Male Plug | ● |
| 2 | – Hose Clamp | ● |
| 1 | Gun Assembly w/ 0 ° Brass Blast Head & Side Handle | ● |
| 1 | 0 ° Tip – Accessory Pack | ● |
| 1 | – 7 mm Allen Wrench | ● |
| 1 | – 0 ° Nozzle Tip 2.0 | ● |
| 1 | – 0 ° Nozzle Tip 3.0 | ● |
| 1 | – 0 ° Nozzle Tip 3.5 | ● |
| 1 | – 0 ° Nozzle Tip 4.0 | ● |
| 1 | – Nozzle Tip Cleaning Tool | ● |
| 1 | – Media Clean Out Brush | ● |
| 1 | – Quick Connect Fitting – 1/4″ Male Plug | ● |
| 2 | – Hose Clamp | ● |
| 1 | 5000 PSI Gauge / Manifold Splitter Assembly – 2 Hose Operation | ● |
| 1 | High Pressure Pressure Washing Hose – 50 ft w/ 3/8″ QC Fittings | ● |
| 1 | Mr. Hard Water Pool Tile Sealer – 1/2 Gallon | ● |
| 1 | Sealer Applicator | ● |
| 1 | Media Sifter | ● |
Designed to easily handle tough cleaning jobs, the WP Series is great for blasting away mud and muck and is great for cleaning jobs on the farm or small business.
Pump: Equipped with the Mi-T-M Pressure Relief Start which eliminates build-up in the system · Brass manifold · Thermal relief valve · In-line water strainer · Built-in low pressure detergent injector
Frame: Powder coated steel frame and base plate with 1-1/4-inch tube handles · 10-inch flat-free tires
Unit Includes: Quick connect nozzles – 15º, 25º and detergent nozzle · 50-foot x 3/8-inch wire-braided high pressure hose · Professional-grade trigger gun · Two-piece, 36-inch lance
Applications:
- Pool Tile
- Stone
- Brick
- Concrete
- Graffiti
- Metal
- Wood
- Marine Boat Hulls
Media:
- Sand
- Salt
- Glass Bead
- Kieserite (MaxxStrip)
- Backing Soda
- Walnut Shells
HOW IT WORKS
First, add media to the hopper. Second, attach the blast gun to your pressure washer. Third, select either the standard gravity fed mode or the turbo air boost mode by adjusting the valves on the Venturi Assist Carburetor (VAC). Fourth, begin wet blasting, sand blasting, or soda blasting.
GRAVITY MODE
Its dual-mode operation is user adjustable and offers two functional modes of operation. In traditional mode, it operates as a gravity fed hopper. The only action on the media results from the venturi blast head which pulls it through the hose and to the work surface. Resisting this action is the weight of the media and the friction in the hose and the hopper causing intermittent flow and shorter work distances. To offset these forces and to smooth out the media flow over longer distances, we use a Venturi Assist Carburetor (VAC) in turbo mode.
TURBO MODE
Connect the VAC to the air compressor. Use the built-in step down regulator located on your air compressor to supply to 1 – 15 psi stable air pressure to the Venturi Assist Carburetor (VAC). This will push the media from the hopper to the work surface while the venturi blast head pulls it. (PUSH/PULL) The air pressure will depend upon the weight of the media and distance to work surface.
